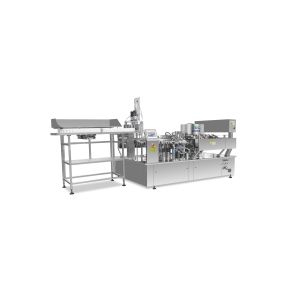

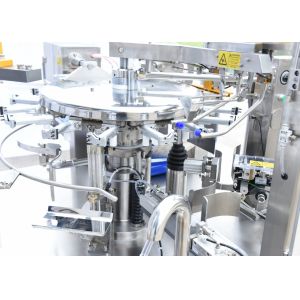

    YDZK8S-12-1018 10 Station Customizable Rotary Vacuum Packaging Machine For Typical Applications Ready Meal

    Ask Lasest Price
    Brand Name : ELEMOTION
    Model Number : YDZK8S-12-1018
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : T/T, 100% L/C at sight, Cash, Western Union
    • Product Details
    • Company Profile

    YDZK8S-12-1018 10 Station Customizable Rotary Vacuum Packaging Machine For Typical Applications Ready Meal

    Features of High-Speed Rotary Vacuum Fill Seal Machine for Small-Sized-Pouch

    • 10 stations, 14 Vacuum Chamber
    • Fuji PLC & HMI control with touch screen operation
    • Germany Busch Vacuum Pump
    • Germany Festo Pneumatic Components
    • The overall surface is after mirror treatment
    • The vacuum chamber adopts high standard aviation aluminum profiles
    • Highly durable stainless steel 304 frame
    • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
    • Pouch presence detection – no filling, no sealing
    • Equipped with a protective door
    • Troubleshooting Via Touchscreen
    • Automatic Quick Changeover in minutes via Touchscreen
    • Fully Automated Filling Machines for flat pouch, stand-up pouch

    Optional Devices

    • Product filling – can be integrated with multi-head scales and auger fillers
    • Date coding
    • Zipper opening device
    • Product settler
    • Gas flush
    • Discharge conveyor
    • Customized filler for fish, poultry, and meat
    • Check Weigher
    • Rotary table for the convinient collection of the finished products.
    • Accommodation of pouches with hole punch/tear notch
    • CE certification

    High Speed Automatic Vacuum Packaging Machine Specifications

    ModelYD10-16-1018TYD10-14-1018YD10-12-1018YD10-12-1318/1321YD10-10-1318/1321/1324/1327YD10-10-1621/1627YD8-10-2331/2337YD8-10-2837/1927YD-ZKCD-0915/1621YD-ZDH-2031
    Number of Stations101010101010881010
    Number of Vacuum Chambers16141212101010101010
    Production Speed (bags/minut)110~130 BPM90~110 BPM70~90 BPM90~110 BPM35~60 BPM35~60 BPM20~45 BPM15~30 BPM
    (YD8-10-2837)
    30~45 BPM
    (YD8-10-1927)    		35~55 BPM35~45 BPM
    Bag Width (mm)55-100mm55-100mm55-100mm55-130mm55-130mm80-160mm120-230mm160-280mm
    (YD8-10-2837)
    100-190mm
    (YD8-10-1927)    		55-90mm
    (YD-ZKCD-0915)
    80-160mm
    (YD-ZKCD-0915    		90-200mm
    Bag Length(mm)60~180mm60~180mm60~180mm60~180mm
    (YD10-12-1318)
    60~210mm
    (YD10-12-1321)    		60~180mm
    (YD10-10-1318)
    60~210mm
    (YD10-10-1321)
    60~240mm
    (YD10-10-1324)
    60~270mm
    (YD10-10-1324)    		60~210mm
    (YD10-10-1621)
    60~270mm
    (YD10-10-1627)    		60~210mm
    (YD8-10-2331)
    60~270mm
    (YD10-10-2337)    		160-370mm
    (YD8-10-2837)
    80-270mm
    (YD8-10-1927)    		80-150mm
    (YD-ZKCD-0915)
    80-210mm
    (YD-ZKCD-0915)    		80~310mm
    Electrical Requirements3-Phase, 380V, Approx. 6 Kw, 50Hz3-Phase, 380V, Approx.6Kw, 50Hz3-Phase, 380V, Approx. 6Kw, 50Hz3-Phase, 380V, Approx. 6Kw, 50Hz3-Phase, 380V, Approx. 4.5 Kw, 50Hz3-Phase, 380V, Approx. 5Kw, 50Hz3-Phase, 380V, Approx. 9Kw, 50Hz3-Phase, 380V, Approx. 9Kw, 60Hz3-Phase, 380V, Approx. 6 Kw, 50Hz3-Phase, 380V, Approx. 6Kw, 50Hz
    Air ConsumptionApprox. 0.8 m3/minApprox. 0.8 m3/minApprox. 0.8 m3/minApprox. 0.8 m3/minApprox. 0.8 m3/minApprox. 0.8 m3/minApprox. 1.2 m3/minApprox. 0.8 m3/minApprox. 0.8 m3/minApprox. 0.8 m3/min
