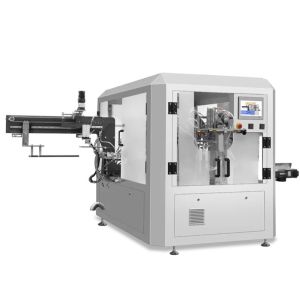

YD-DFZ-230 Rotary Premade Pouch Packing Machine Eight Stations Servo Driven With Side Pusher

Product Categories

wuhu elemotion technology co., ltd

Contact Now

Name: YDDFZ230 Rotary Premade Pouch Packing Machine Eight Stations Servo Driven With Side Pusher
Brand: ELEMOTION
Price: 1 USD

Ask Lasest Price
Model Number :	YD-DFZ-230
Brand Name :	ELEMOTION
Certification :	CE ISO
Price :	Negotiation
Payment Terms :	T/T, 100% L/C at sight, Cash, Western Union

Add to Cart

Features of Rotary Premade Pouch Packaging Machine with Side-Push Feeder

8 stations, single bag
Siemens PLC control with touch screen operation
Servo-driven Inovance control platform
Highly durable stainless steel 304 frame
Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
Pouch presence detection – no filling, no sealing
Food grade air filter for bag open air
Automatic Quick Changeover in minutes via Touchscreen
Runs a variety of premade pouches without any change parts
Troubleshooting Via Touchscreen
Large Pouch Size Ranges

Model	YDZDH-230A	YDZDH-260A	YDZDH-160S	YDZDH-230S	YDZDH-300A	YDZDH-/380A	YD-DFZ-230	YDZDH-S160	YD-GDM8-160
Number of Stations	8	8	10	10	6	6	8	6	8
Number of Lanes	1	1	1	1	1	1	1	2	1
Maximum Speed Per Minute (dry cycle)	60	60	80	80	40	40	40	80	80
Bag Gripping Range (mm)	80-230mm	130-260mm	60-160mm	80-230mm	180-300mm	240-380mm	120-230mm	70-160mm	80-120mm
Maximum Bag Length (mm)	350mm	400mm	300mm	350mm	450mm	450mm	320mm	300mm	300mm
Electrical Requirements	3-Phase, 380V, Approx. 4.5 Kw, 50Hz	3-Phase, 380V, Approx. 5Kw, 50Hz	3-Phase, 380V, Approx. 4Kw, 50Hz	3-Phase, 380V, Approx. 4.5 Kw, 50Hz	3-Phase, 380V, Approx. 5Kw, 50Hz	3-Phase, 380V, Approx. 5 Kw, 50Hz	3-Phase, 380V, Approx. 8 Kw, 60Hz	3-Phase, 380V, Approx. 5.2 Kw, 50Hz	3-Phase, 380V, Approx. 4 Kw, 50Hz
Compressed Air	Approx. 600NL/min, 5~6kgf/cm2	Approx. 600NL/min, 5~6kgf/cm2	Approx. 600NL/min, 5~6kgf/cm2	Approx. 600NL/min, 5~6kgf/cm2	Approx. 600NL/min, 5~6kgf/cm2	Approx. 600NL/min, 5~6kgf/cm2	Approx. 400NL/min, 5~6kgf/cm2	Approx. 400NL/min, 5~6kgf/cm2	Approx. 400NL/min, 5~6kgf/cm2
